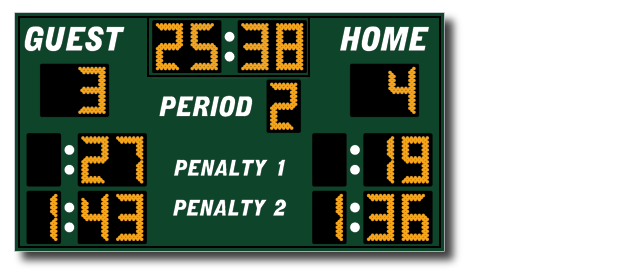

Hockey Scoreboards by scoreboards.net Model DN-7860

COLOR OPTIONS
Select primary color
Select LEDs colors
Select Accent colors

COLOR OPTIONS
	Primary:	Hunter Green
	LEDs:	Amber
	Accent:	Stone Tan

SUPPORT DOCS

Scoreboard Product Sheet

Scoreboard Specifications

Owner's Handbook

STANDARD FEATURES

Super-bright energy efficient LEDs (choose red or amber)

100% solid state microprocessor-controlled electronics

Mounting hardware for clamping to posts -- no need for on-site fabrication

Simplified 15-key control console

Junction box and 10 ft. patch cable for data

Automotive grade baked-on enamel-based paint (choose from 16 standard colors)

Rust-free aluminum cabinet

ETL listed to UL standard

Five-year limited warranty

Toll-free technical support via phone for the life of the product

OPTIONS & UPGRADES

Wireless RF communication system

Data cable

Carrying case for control console

Team Name in place of HOME

Up to four console outputs for multiple displays

DISPLAY FEATURES
Guest Penalty Time 1:	11 in.
Guest Penalty Time 2:	11 in.
Home Penalty Time 1:	11 in.
Home Penalty Time 2:	11 in.
Clock:	11 in.
Guest Score:	11 in.
Home Score:	11 in.
Period:	11 in.

Hockey Scoreboard Model DN-7860

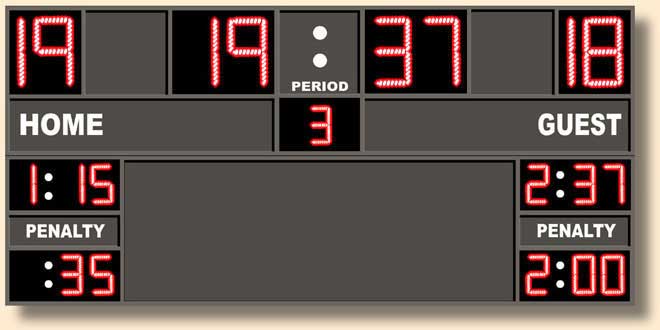

GM-HK-04 Hockey scoreboard with LED displays and wireless control. The frame is constructed from continuously welded aluminum box tubing which receives a high quality baked on powder coat finish. It has 17 inch tall LED digits for clock, and score, and 9 inch tall LED displays for period and penalty. Game time counts down or up. Maximum time is 59 minutes and 59 seconds. May display time of day when game is over. Penalty value is preset to 2 minutes, but may be changed by the operator and is activated with one button for each player. Display illumination can be adjusted to three levels. A loud horn with adjustable duration is standard. The last minute of game time displays tenths of seconds. Scores up to 19. Optionally can score up to 99. LED displays last up to 100,000 hours. The included wireless controller means that there are no cables to worry about. Just plug it in and play. It uses less than 4 amperes of current at 120 volts AC. Size is 69 inches tall by 144 inches wide by 2 inches deep. Weight is approximately 140 pounds.

Custom hockey scoreboards are available with your choice of features, colors, frame size, display size, logos, and more. We can build your scoreboard just the way that you want it for less than you expect. Call 1-(800) 230-0948 and find out what we can do for you.
